Capsule Filling Machine

Product Description

Automatic Capsule Filling Machine

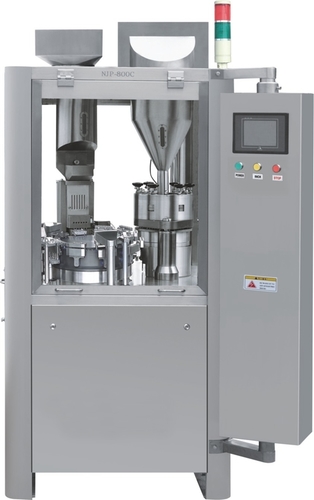

Model: NJP-2-400C Fully Automatic Capsule Filling Machine

Auto Capsule Filling Machine is used to fill powder in the form of slug in hard gelatin capsules.
These are high speed, a high performance machine that incorporates latest international design and is built with precision using most appropriate material and up to date manufacturing systems. Different models are available for various output requirements.
It is designed to cater various formulations with option to fill powder, Granule and pellets.

Its automatic filling demands very high accuracy besides high productivity, ease of operation and minimum maintenance. This machine has been specifically designed to meet all these requirements.
The machine guarantees maximum quality in terms of filled accuracy and product safety at a very economical price. NJP-2 series automatic capsule filling machine is a result of many years of experience in the field of capsule filling.

Functional sequence

Features

• Tamping Mechanism enables capsules to be filled with a weight
• variation of 2 %.
• Faulty capsule and filled capsule ejection stations with individual air controls.
• Quick changeover for a variety of capsule sizes with minimal follow-up adjustments and maintenance requirements.
• closed system protect your product from contaminants, and allow a dust-free production environment for better health and easier cleaning
• Adjustable gap between dosing disk and tamping plate ensures minimum spillage of powder.
• Unit goes with touch panel, control by PLC.
• All contact parts of medical powders are made from a corrosion resistant stainless steel 316.
• Automatic vacuum removal of the air in the dosing tube to give more accurate weight of the filled capsules.



Safety System

• Machine stops automatically in the event of following problems through safety interlock system.
• No capsules
• No powder
• Door in open condition
• Air pressure low
• Strengthened Filling Efficiency
• As it minimizes the gap with a dosing disk, by prolonging the length of powder duct, it raises
• filling efficiency to significantly improve the collection rate of scattered powder. Also, with improved filling efficiency,
• it minimizes powder leaking into the machine during dosing disk rotation

Turntable with Mechanical Cam Drive System

• By adopting an index and cam-drive method, it significantly reduces noise and vibration with excellent abrasion resistance.
• Through rotary motion delivered from a cam shaft, it transfers capsules to maintain each part's function.



Technical Specification
